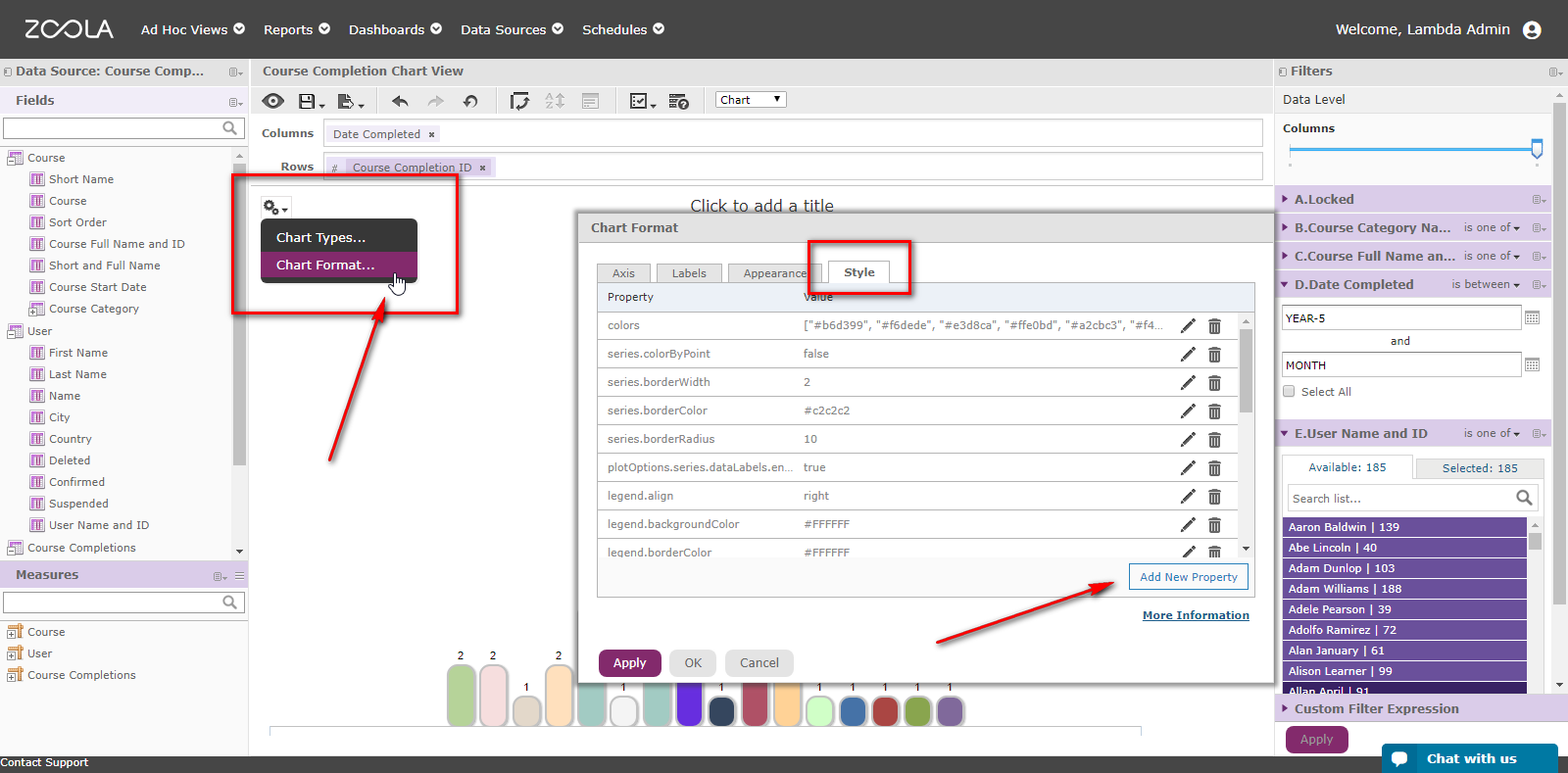

To style any chart, login to Zoola Analytics and open any existing chart-based Ad Hoc View and click the properties icon and choose "Chart Format..." This will open the Chart Format dialog and you can click the "Style" tab and enter the following properties.

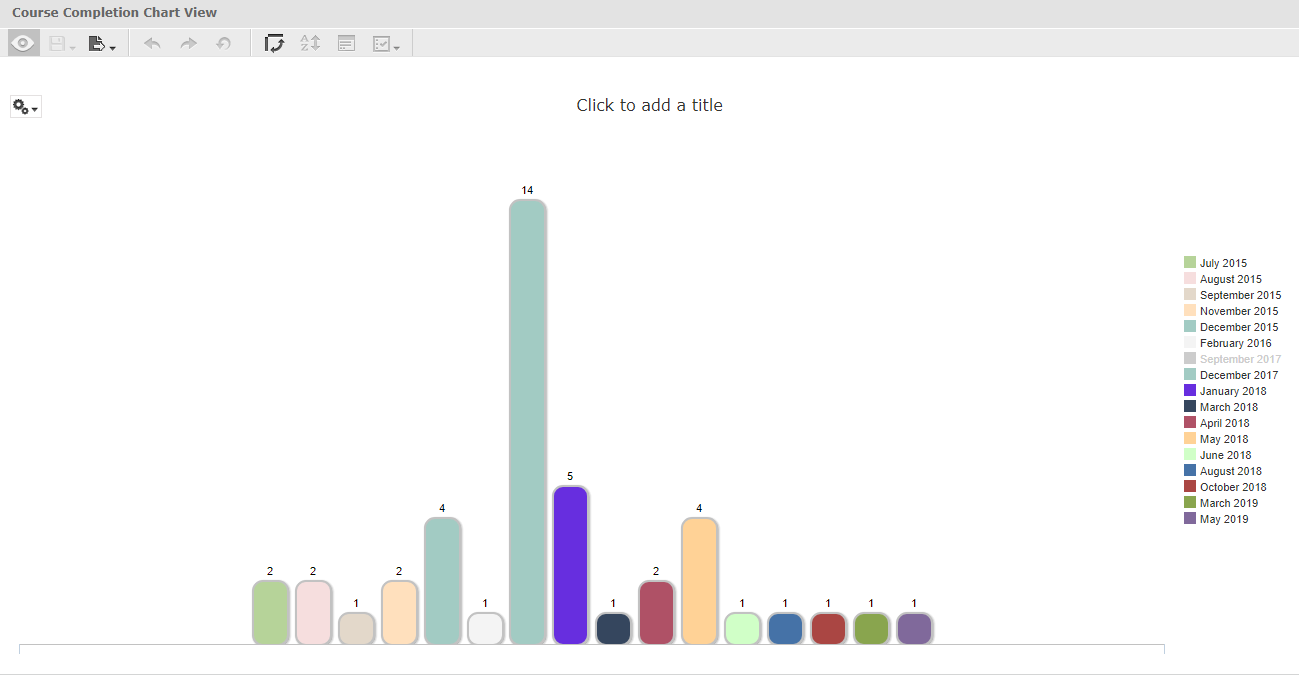

Bar and Column Charts
Example
Properties
Property | Value |
|---|---|
colors | ["#b6d399", "#f6dede", "#e3d8ca", "#ffe0bd", "#a2cbc3", "#f4f4f4", "#6897bb", "#a2cbc3", "#672edf", "#35465e", "#af5166", "#ffd296", "#d0ffc7"] |
series.colorByPoint | false |
series.borderWidth | 2 |
series.borderColor | #c2c2c2 |
series.borderRadius | 10 |
plotOptions.series.dataLabels.enabled | true |
legend.align | right |
legend.backgroundColor | #FFFFFF |
legend.borderColor | #FFFFFF |
legend.verticalAlign | middle |
xAxis.labels.enabled | false |
yAxis.labels.enabled | false |
legend.itemStyle | {"color": "#333333", "cursor": "pointer", "fontSize": "11px", "fontWeight": "normal", "textOverflow": "ellipsis"} |
plotOptions.column.dataLabels.style.fontSize | 11px |
plotOptions.series.dataLabels.style.fontWeight | normal |
xAxis.gridLineColor | transparent |
yAxis.gridLineColor | transparent |
chart.style.fontFamily | Helvetica, Verdana, Arial, Georgia, sans-serif |
xAxis.lineColor | #c2c2c2 |
legend.itemMarginBottom | 2 |
legend.itemMarginTop | 2 |

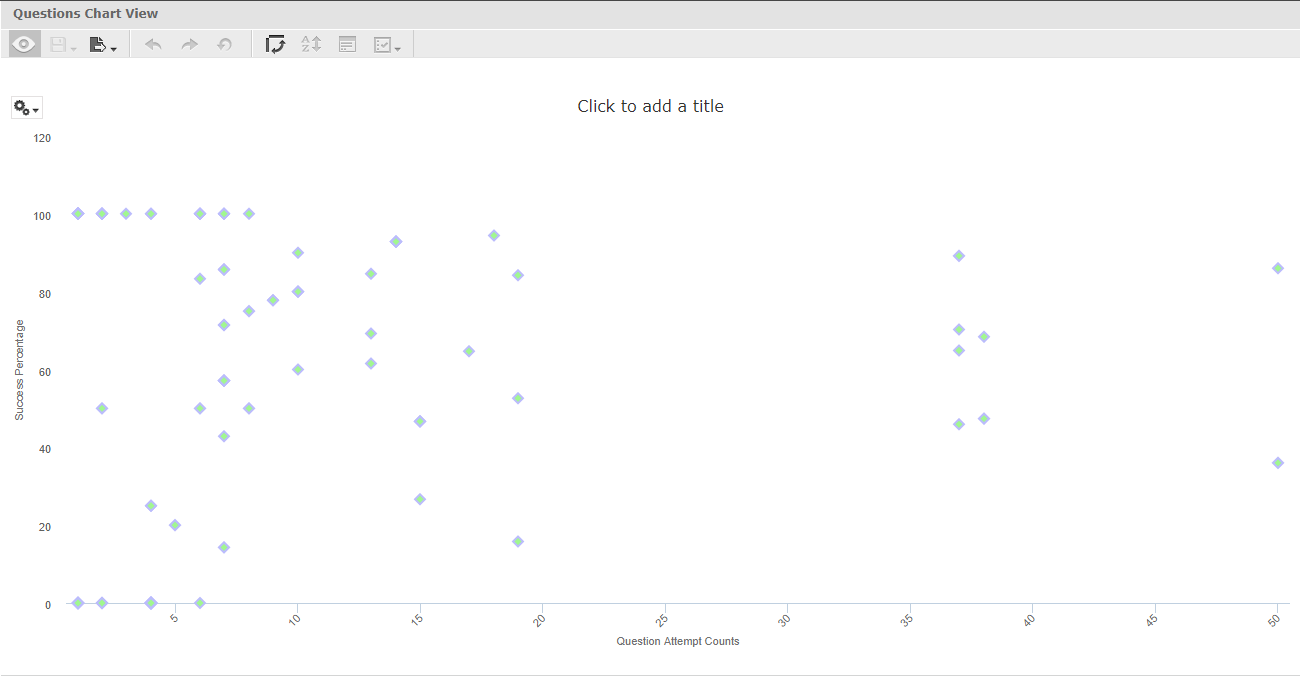

Scatter Charts
Example
Properties
Property | Value |
|---|---|
legend.layout | vertical |
legend.align | left |
legend.verticalAlign | top |
legend.floating | true |
plotOptions.scatter.marker.radius | 5 |
plotOptions.scatter.marker.symbol | diamond |
plotOptions.scatter.marker.states.hover.fillColor | #C2C2C2 |
plotOptions.scatter.marker.states.hover.lineColor | #000000 |
plotOptions.scatter.marker.fillColor | #a1f78f |
plotOptions.scatter.marker.lineColor | #bbbcfc |
plotOptions.scatter.marker.lineWidth | 2px |
xAxis.gridLineColor | transparent |
yAxis.gridLineColor | transparent |
chart.style.fontFamily | Helvetica, Verdana, Arial, Georgia, sans-serif |
chart.spacingBottom | 30 |

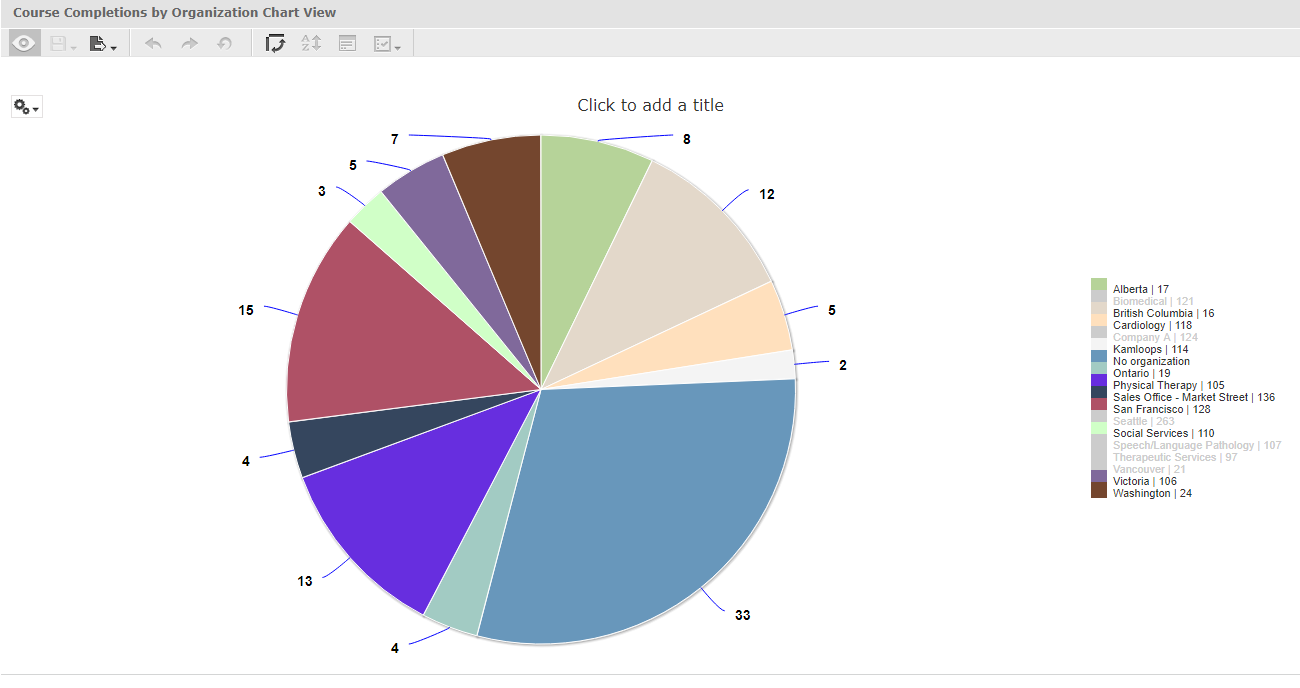

For Pie Charts
Example
Properties
Property | Value |
|---|---|
colors | ["#b6d399", "#f6dede", "#e3d8ca", "#ffe0bd", "#a2cbc3", "#f4f4f4", "#6897bb", "#a2cbc3", "#672edf", "#35465e", "#af5166", "#ffd296", "#d0ffc7"] |
series.dataLabels.enabled | true |
legend.align | right |
legend.backgroundColor | #FFFFFF |
legend.borderColor | #FFFFFF |
legend.verticalAlign | middle |
legend.itemStyle | {"color": "#333333", "cursor": "pointer", "fontSize": "11px", "fontWeight": "normal", "textOverflow": "ellipsis"} |
chart.style.fontFamily | Helvetica, Verdana, Arial, Georgia, sans-serif |
series.dataLabels.connectorColor | #0000FF |
series.dataLabels.distance | 30 |
series.dataLabels.format | {y} |
chart.style.fontSize | 16px |
series.dataLabels.style | {"color": "contrast", "fontSize": "14px", "fontWeight": "bold", "textOutline": "1px contrast" } |

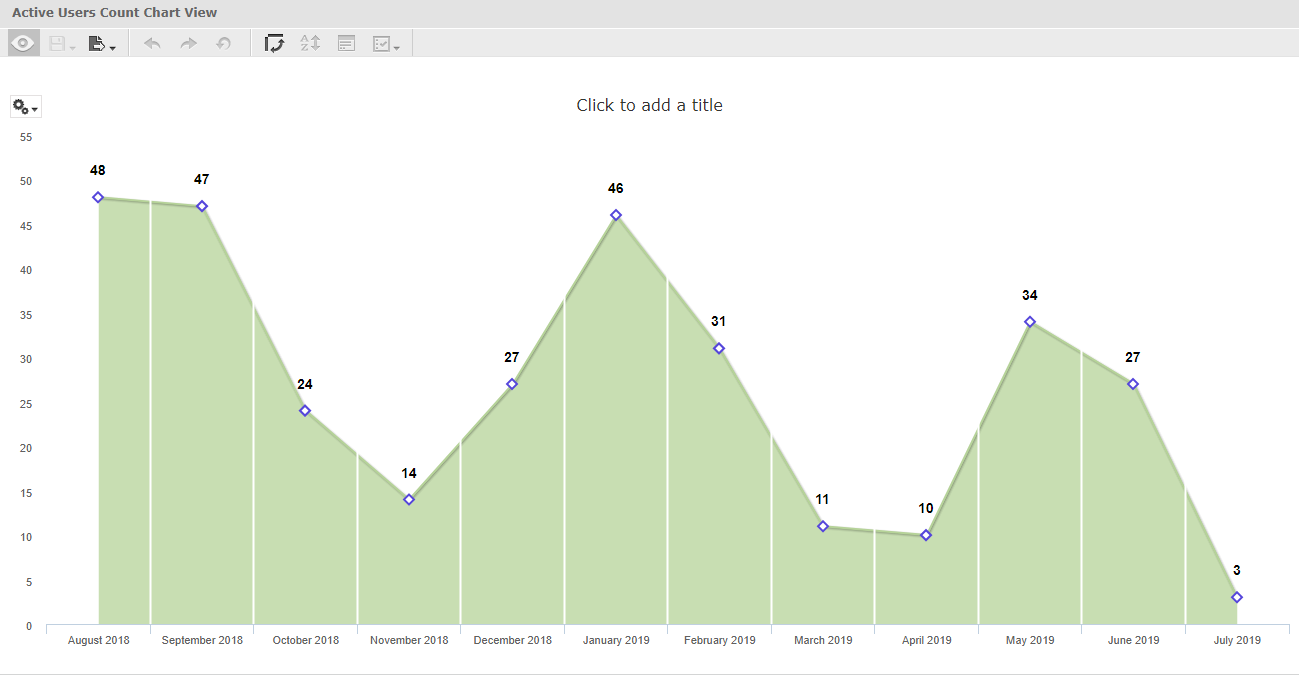

For Line and Area Charts
Example
Properties
Property | Value |
|---|---|
colors | ["#b6d399", "#f6dede", "#e3d8ca", "#ffe0bd", "#a2cbc3", "#f4f4f4", "#6897bb", "#a2cbc3", "#672edf", "#35465e", "#af5166", "#ffd296", "#d0ffc7"] |
plotOptions.area.marker.symbol | diamond |
plotOptions.area.marker.fillColor | #FFFFFF |
plotOptions.area.marker.lineColor | #5546db |
plotOptions.area.marker.lineWidth | 2px |
plotOptions.area.marker.radius | 5 |
chart.style.fontFamily | Helvetica, Verdana, Arial, Georgia, sans-serif |
series.dataLabels.enabled | true |
series.dataLabels.style | {"color": "contrast", "fontSize": "14px", "fontWeight": "bold", "textOutline": "1px contrast" } |
series.dataLabels.padding | 20 |
xAxis.labels.rotation | 0 |
yAxis.gridLineColor | transparent |
xAxis.gridLineColor | #FFFFFF |
xAxis.gridLineWidth | 2px |
xAxis.gridZIndex | 4 |
